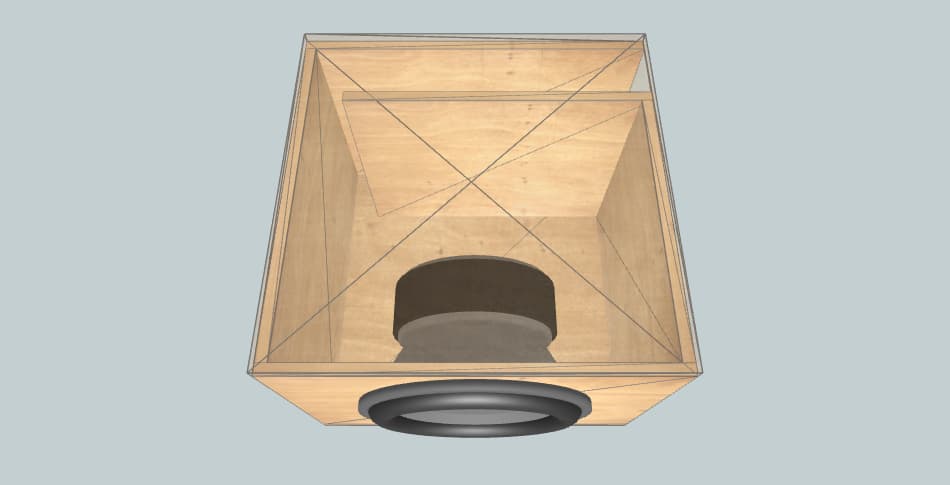

Box External Dimensions Width × Height × Depth |
21.00" × 23.50" × 22.17" |
| Material Thickness | 0.75" |
| Net Internal Volume | 4.40 ft3 |
| Tuning Frequency | 34 Hz |
| Port Area | 44 inch2 |
| Port Inlet Width × Height |
2.00" × 22.00" |
| Port Length | 15.20" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.00" × 22.17" | 2 |
| Front | 18.25" × 22.00" | 1 |
| Rear | 21.00" × 22.00" | 1 |
| Left | 20.67" × 22.00" | 1 |
| Right | 21.42" × 22.00" | 1 |
| Port | 14.46" × 22.00" | 1 |
