Subwoofer Box Skar evl 2

Ported Box for 15 inch Subwoofer

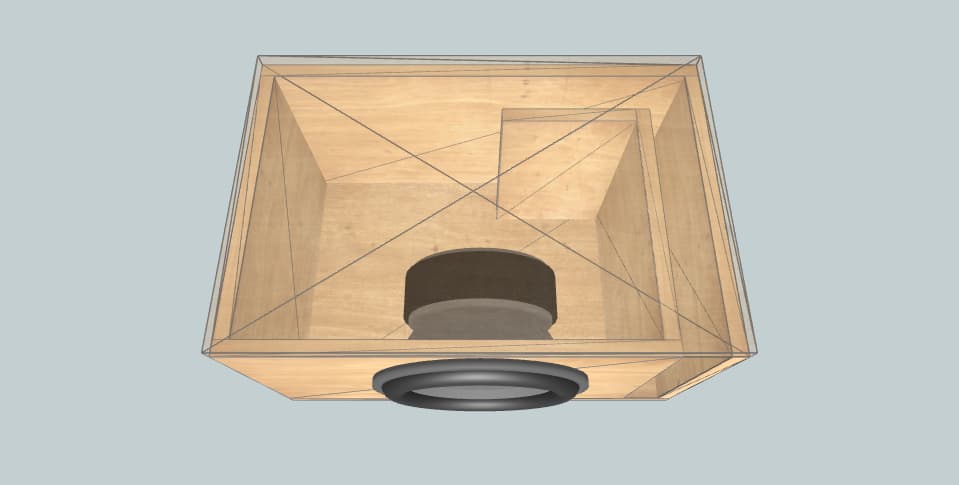

15 inch subwoofer box Skar evl 2

Subwoofer Box Specifications

Enclosure Name: evl 2

Subwoofer Brand: Skar

Subwoofer Size: 15 inch

Subwoofer Count: 1

Box External Dimensions
Width × Height × Depth
31.50" × 17.72" × 21.28"
Material Thickness 1.00"
Net Internal Volume 3.99 ft3
Tuning Frequency 28 Hz
Port Area 45 inch2
Port Inlet
Width × Height
2.86" × 15.72"
Port Length 30.55"


Detail Size Quantity
Top / Bottom 31.50" × 21.28" 2
Front 27.63" × 15.72" 1
Rear 31.50" × 15.72" 1
Left 19.28" × 15.72" 1
Right 20.28" × 15.72" 1
Port 16.41" × 15.72" 1
Port 9.28" × 15.72" 1
Ø355.6mm 31.50" 27.63" 21.28" 19.28" 21.28" 19.28" 17.72" 15.72" Top Top Bottom Bottom Rear Front Left Right Rear Front Left Right subbox.pro
