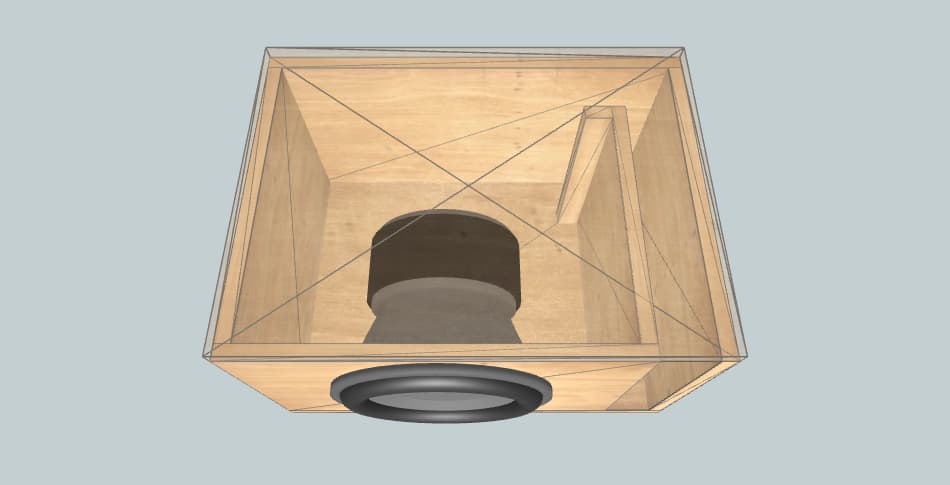

Box External Dimensions Width × Height × Depth |
20.00" × 16.00" × 24.19" |
| Material Thickness | 0.63" |
| Net Internal Volume | 3.20 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.58" × 14.74" |
| Port Length | 19.08" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.00" × 24.19" | 2 |
| Front | 17.79" × 14.74" | 1 |
| Rear | 20.00" × 14.74" | 1 |
| Left | 22.93" × 14.74" | 1 |
| Right | 23.56" × 14.74" | 1 |
| Port | 18.45" × 14.74" | 1 |
