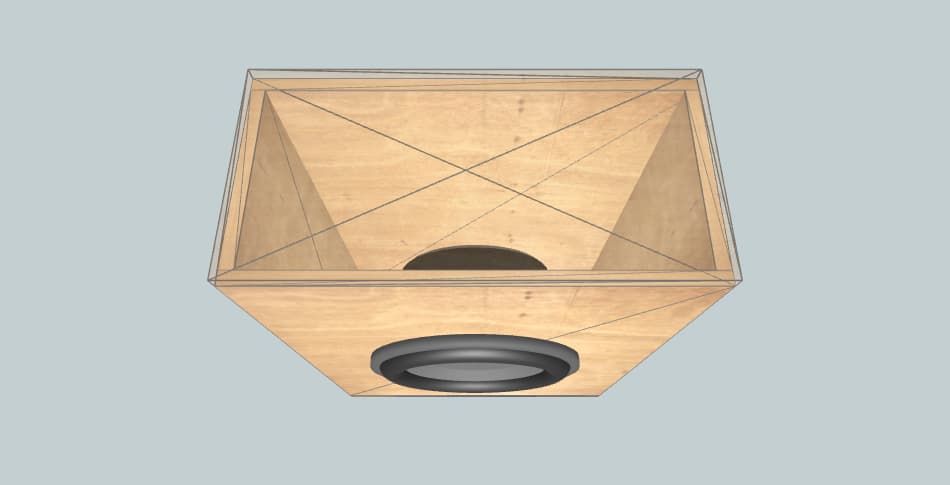

Box External Dimensions Width × Height × Depth |
28.35" × 15.75" × 17.46" |
| Material Thickness | 0.63" |
| Net Internal Volume | 3.35 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 26.4 inch2 |
| Port Inlet Width × Height |
1.82" × 14.49" |
| Port Length | 11.00" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 28.35" × 17.46" | 2 |
| Front / Rear | 28.35" × 14.49" | 2 |
| Left | 16.20" × 14.49" | 1 |
| Right | 13.76" × 14.49" | 1 |
| Port | 11.00" × 14.49" | 1 |
