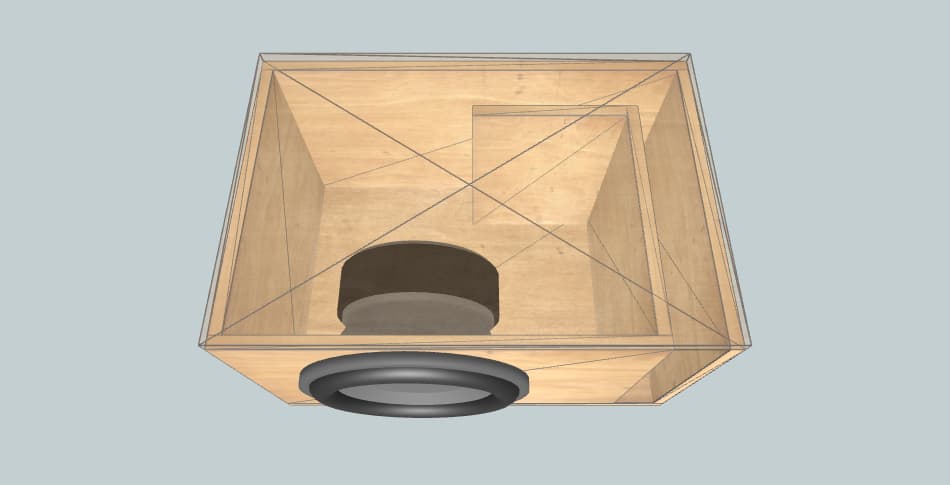

Box External Dimensions Width × Height × Depth |
23.62" × 14.96" × 12.84" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.59 ft3 |
| Tuning Frequency | 38 Hz |
| Port Area | 21.3 inch2 |
| Port Inlet Width × Height |
1.57" × 13.54" |
| Port Length | 19.40" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 12.84" | 2 |
| Front | 21.34" × 13.54" | 1 |
| Rear | 23.62" × 13.54" | 1 |
| Left | 11.42" × 13.54" | 1 |
| Right | 12.13" × 13.54" | 1 |
| Port | 9.85" × 13.54" | 1 |
| Port | 6.56" × 13.54" | 1 |
