Hello Friend!
|

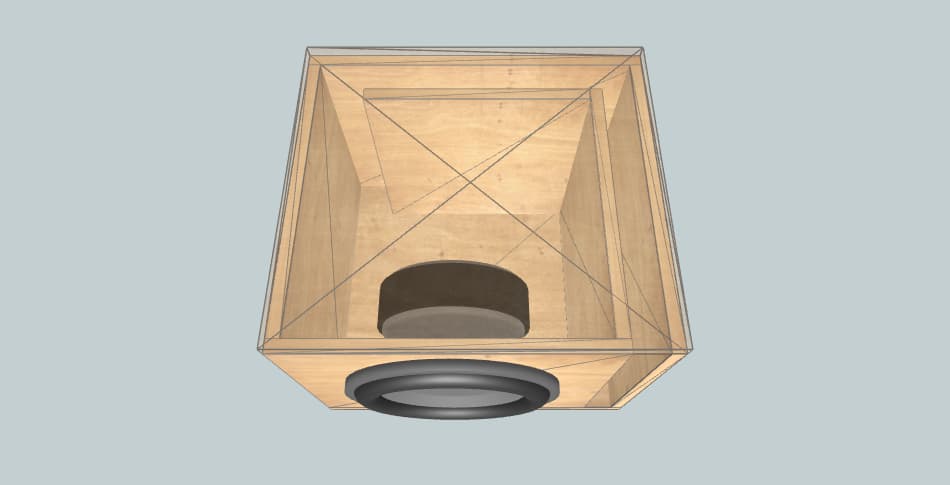

Box External Dimensions Width × Height × Depth |
32.00" × 14.00" × 14.67" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.25 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 31.3 inch2 |
| Port Inlet Width × Height |
2.50" × 12.50" |
| Port Length | 29.72" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 32.00" × 14.67" | 2 |
| Front | 28.75" × 12.50" | 1 |
| Rear | 32.00" × 12.50" | 1 |
| Left | 13.18" × 12.50" | 1 |
| Right | 13.93" × 12.50" | 1 |
| Port | 10.68" × 12.50" | 1 |
| Port | 15.04" × 12.50" | 1 |
