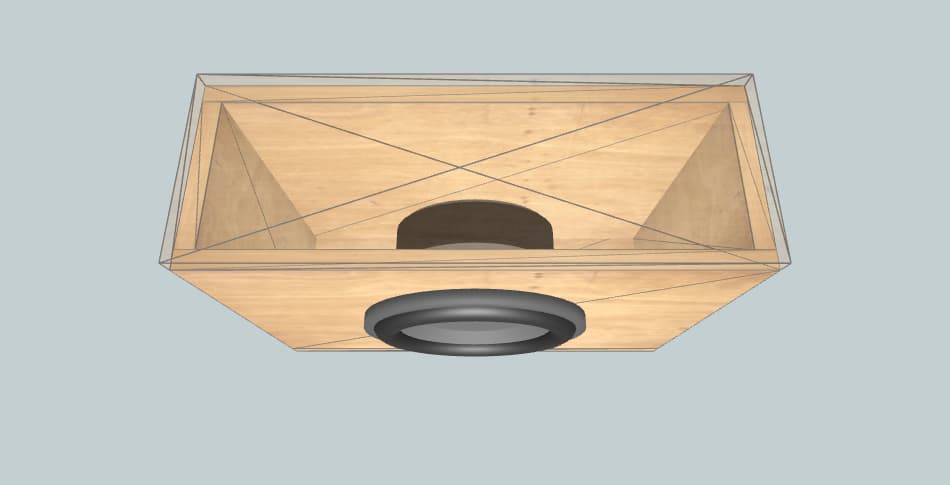

Box External Dimensions Width × Height × Depth |
48.00" × 14.00" × 6.05" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.34 ft3 |
| Tuning Frequency | 38 Hz |
| Port Area | 13.2 inch2 |
| Port Inlet Width × Height |
1.05" × 12.58" |
| Port Length | 13.88" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 48.00" × 6.05" | 2 |
| Front / Rear | 48.00" × 12.58" | 2 |
| Left | 4.63" × 12.58" | 1 |
| Right | 2.88" × 12.58" | 1 |
| Port | 13.88" × 12.58" | 1 |
