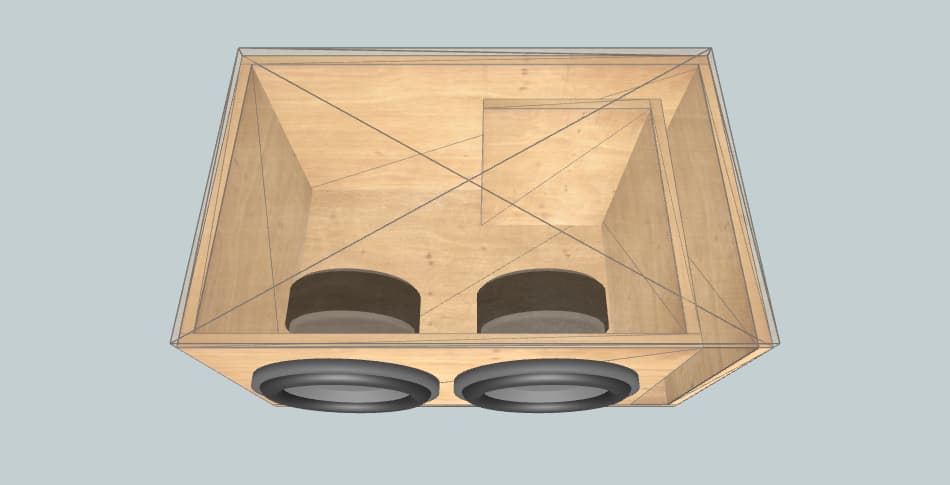

Box External Dimensions Width × Height × Depth |
40.00" × 12.00" × 10.81" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.00 ft3 |
| Tuning Frequency | 40 Hz |
| Port Area | 22 inch2 |
| Port Inlet Width × Height |
2.09" × 10.50" |
| Port Length | 12.80" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 40.00" × 10.81" | 2 |
| Front | 37.16" × 10.50" | 1 |
| Rear | 40.00" × 10.50" | 1 |
| Left | 9.32" × 10.50" | 1 |
| Right | 10.07" × 10.50" | 1 |
| Port | 7.22" × 10.50" | 1 |
| Port | 1.99" × 10.50" | 1 |
