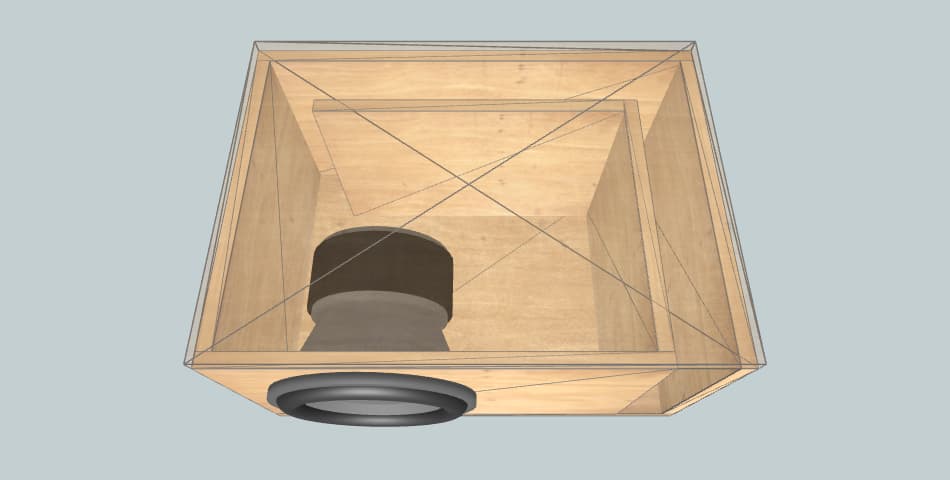

Box External Dimensions Width × Height × Depth |
31.50" × 17.72" × 14.01" |
| Material Thickness | 0.71" |
| Net Internal Volume | 3.32 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.43" × 16.30" |
| Port Length | 8.67" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.50" × 14.01" | 2 |
| Front / Rear | 31.50" × 16.30" | 2 |
| Left | 12.59" × 16.30" | 1 |
| Right | 10.46" × 16.30" | 1 |
| Port | 8.67" × 16.30" | 1 |
