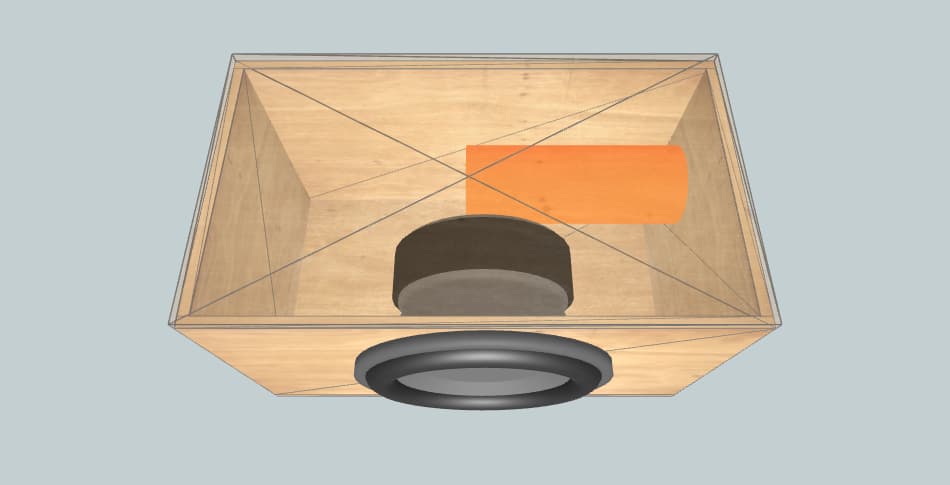

Box External Dimensions Width × Height × Depth |
32.25" × 15.00" × 31.18" |
| Material Thickness | 0.75" |
| Net Internal Volume | 5.50 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 80 inch2 |
| Port Inlet Width × Height |
5.93" × 13.50" |
| Port Length | 25.07" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 32.25" × 31.18" | 2 |
| Front / Rear | 32.25" × 13.50" | 2 |
| Left | 29.68" × 13.50" | 1 |
| Right | 23.01" × 13.50" | 1 |
| Port | 25.07" × 13.50" | 1 |
