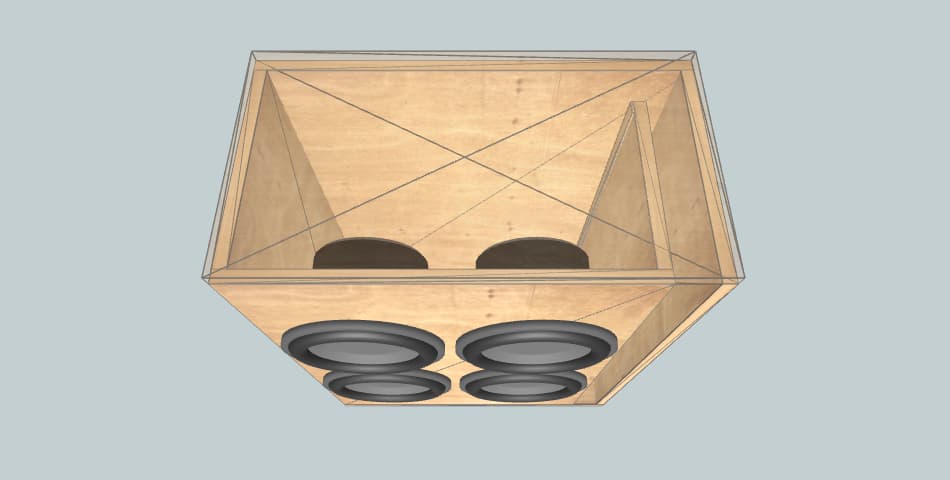

Box External Dimensions Width × Height × Depth |
27.00" × 14.00" × 12.78" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.40 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 22 inch2 |
| Port Inlet Width × Height |
1.76" × 12.50" |
| Port Length | 33.18" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.00" × 12.78" | 2 |
| Front | 24.49" × 12.50" | 1 |
| Rear | 27.00" × 12.50" | 1 |
| Left | 11.28" × 12.50" | 1 |
| Right | 12.03" × 12.50" | 1 |
| Port | 9.52" × 12.50" | 1 |
| Port | 20.41" × 12.50" | 1 |
