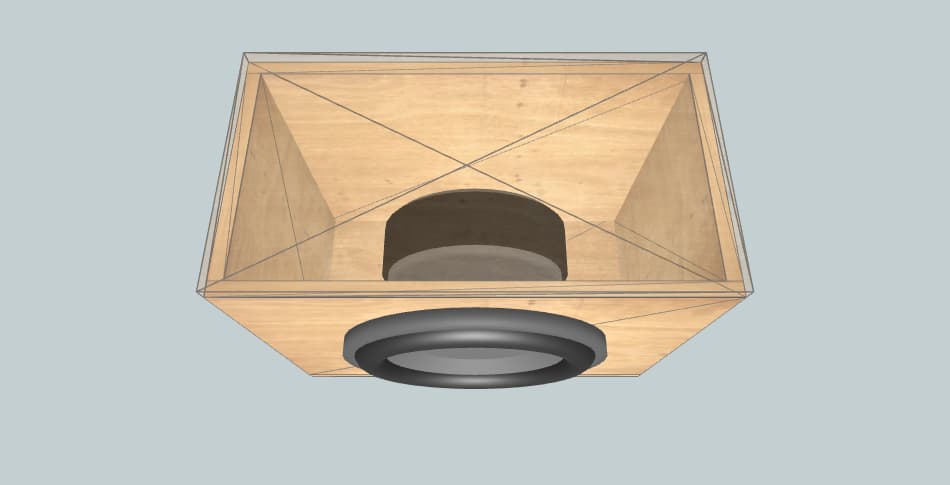

Subwoofer Box Specifications
Enclosure Name: 10
Subwoofer Brand: Infinity
Subwoofer Size: 10 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
15.75" × 13.78" × 19.68" |
| Material Thickness | 1.02" |
| Net Internal Volume | 1.47 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 10.9 inch2 |
| Port Inlet Width × Height |
0.93" × 11.73" |
| Port Length | 18.08" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 15.75" × 19.68" | 2 |
| Front | 13.80" × 11.73" | 1 |
| Rear | 15.75" × 11.73" | 1 |
| Left | 17.63" × 11.73" | 1 |
| Right | 18.66" × 11.73" | 1 |
| Port | 15.69" × 11.73" | 1 |
