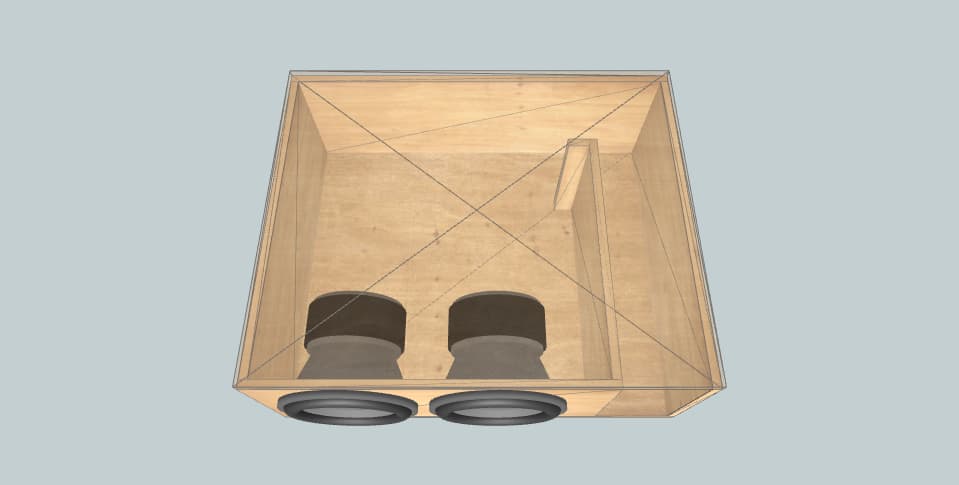

Subwoofer Box Specifications
Enclosure Name: newbox2
Subwoofer Size: 12 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
38.00" × 14.00" × 31.44" |
| Material Thickness | 0.75" |
| Net Internal Volume | 5.50 ft3 |
| Tuning Frequency | 31 Hz |
| Port Area | 88 inch2 |
| Port Inlet Width × Height |
7.04" × 12.50" |
| Port Length | 33.41" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 38.00" × 31.44" | 2 |
| Front | 30.21" × 12.50" | 1 |
| Rear | 38.00" × 12.50" | 1 |
| Left | 29.95" × 12.50" | 1 |
| Right | 30.70" × 12.50" | 1 |
| Port | 22.91" × 12.50" | 1 |
| Port | 1.96" × 12.50" | 1 |
