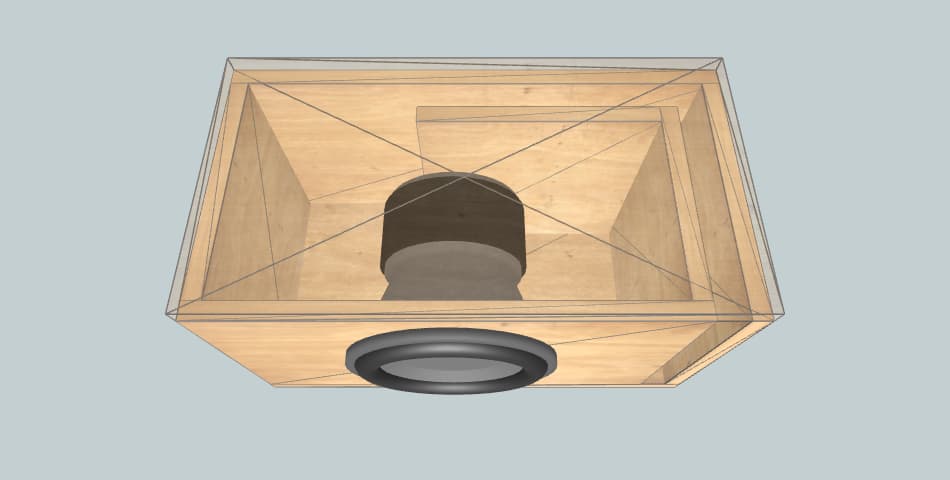

Box External Dimensions Width × Height × Depth |
21.00" × 17.00" × 20.27" |
| Material Thickness | 0.50" |
| Net Internal Volume | 2.75 ft3 |
| Tuning Frequency | 31 Hz |
| Port Area | 31 inch2 |
| Port Inlet Width × Height |
1.94" × 16.00" |
| Port Length | 24.78" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.00" × 20.27" | 2 |
| Front | 18.56" × 16.00" | 1 |
| Rear | 21.00" × 16.00" | 1 |
| Left | 19.27" × 16.00" | 1 |
| Right | 19.77" × 16.00" | 1 |
| Port | 17.33" × 16.00" | 1 |
| Port | 4.52" × 16.00" | 1 |
