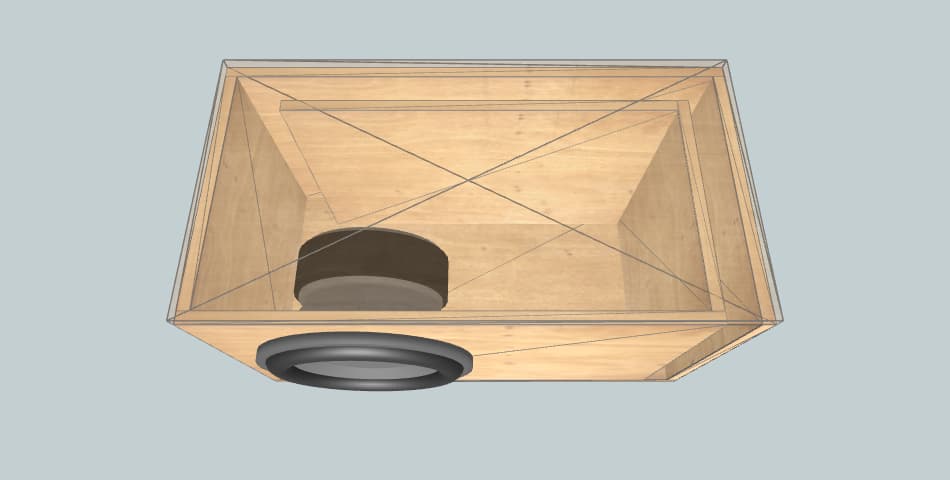

Box External Dimensions Width × Height × Depth |
29.53" × 14.96" × 14.08" |
| Material Thickness | 0.71" |
| Net Internal Volume | 2.47 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.72" × 13.54" |
| Port Length | 14.80" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 29.53" × 14.08" | 2 |
| Front | 27.10" × 13.54" | 1 |
| Rear | 29.53" × 13.54" | 1 |
| Left | 12.67" × 13.54" | 1 |
| Right | 13.37" × 13.54" | 1 |
| Port | 10.95" × 13.54" | 1 |
| Port | 0.71" × 13.54" | 1 |
