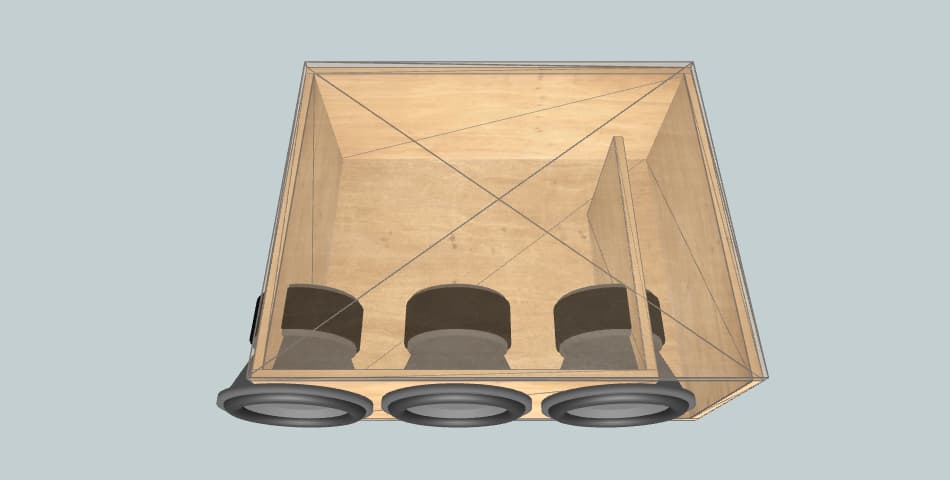

Box External Dimensions Width × Height × Depth |
18.25" × 14.25" × 16.25" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.35 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 18.4 inch2 |
| Port Inlet Width × Height |
1.44" × 12.76" |
| Port Length | 28.44" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 18.25" × 16.25" | 2 |
| Front | 16.06" × 12.76" | 1 |
| Rear | 18.25" × 12.76" | 1 |
| Left | 14.75" × 12.76" | 1 |
| Right | 15.50" × 12.76" | 1 |
| Port | 13.31" × 12.76" | 1 |
| Port | 12.19" × 12.76" | 1 |
