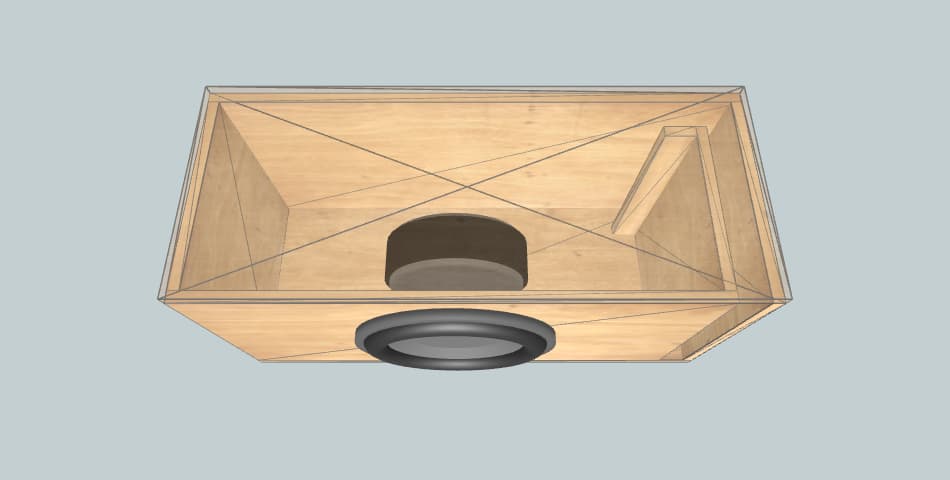

Box External Dimensions Width × Height × Depth |
17.50" × 15.00" × 22.55" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.30 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 23 inch2 |
| Port Inlet Width × Height |
1.70" × 13.50" |
| Port Length | 20.46" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 17.50" × 22.55" | 2 |
| Front | 15.05" × 13.50" | 1 |
| Rear | 17.50" × 13.50" | 1 |
| Left | 21.06" × 13.50" | 1 |
| Right | 21.80" × 13.50" | 1 |
| Port | 18.60" × 13.50" | 1 |
