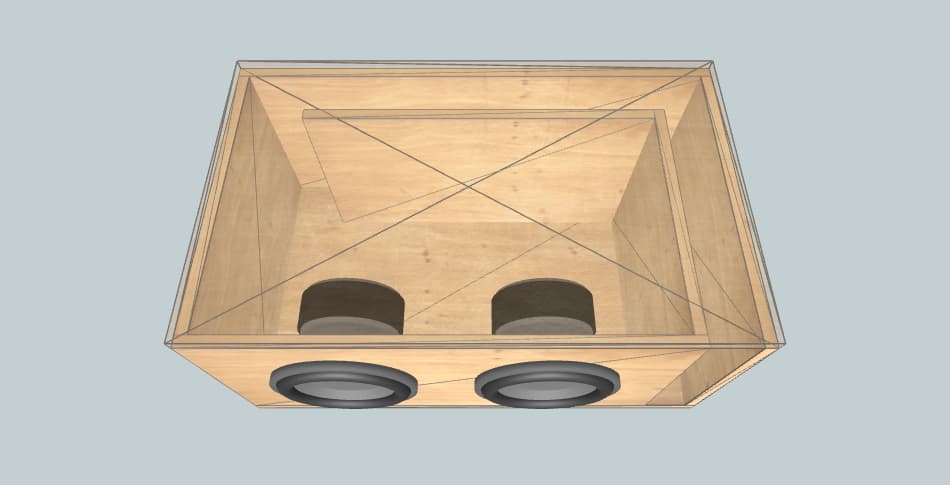

Box External Dimensions Width × Height × Depth |
32.00" × 14.00" × 11.98" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.80 ft3 |
| Tuning Frequency | 37 Hz |
| Port Area | 25.5 inch2 |
| Port Inlet Width × Height |
2.04" × 12.50" |
| Port Length | 21.69" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 32.00" × 11.98" | 2 |
| Front | 29.21" × 12.50" | 1 |
| Rear | 32.00" × 12.50" | 1 |
| Left | 10.48" × 12.50" | 1 |
| Right | 11.23" × 12.50" | 1 |
| Port | 8.44" × 12.50" | 1 |
| Port | 9.72" × 12.50" | 1 |
