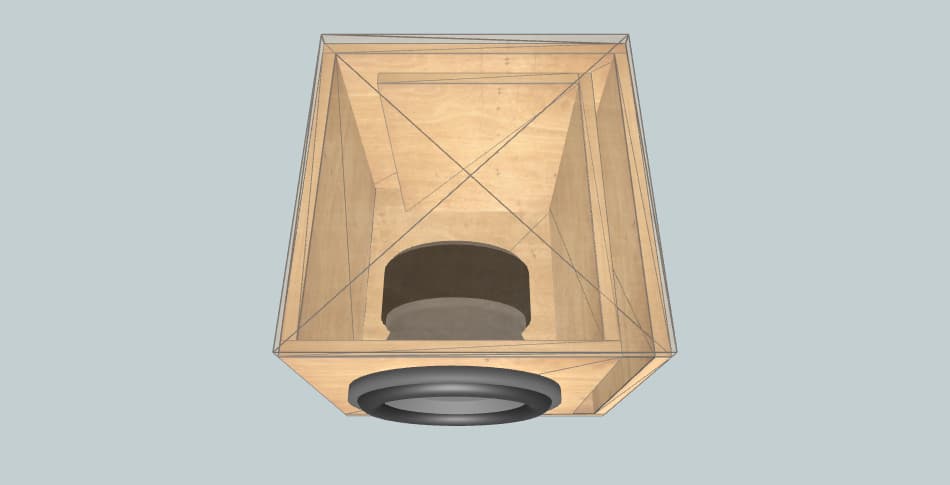

Subwoofer Box Specifications
Enclosure Name: TS-W255C
Subwoofer Brand: Pioneer
Subwoofer Size: 10 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
14.96" × 14.00" × 15.77" |
| Material Thickness | 0.63" |
| Net Internal Volume | 1.10 ft3 |
| Tuning Frequency | 36 Hz |
| Port Area | 16 inch2 |
| Port Inlet Width × Height |
1.26" × 12.74" |
| Port Length | 25.39" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 14.96" × 15.77" | 2 |
| Front | 13.07" × 12.74" | 1 |
| Rear | 14.96" × 12.74" | 1 |
| Left | 14.51" × 12.74" | 1 |
| Right | 15.14" × 12.74" | 1 |
| Port | 13.26" × 12.74" | 1 |
| Port | 9.62" × 12.74" | 1 |
