Hello Friend!

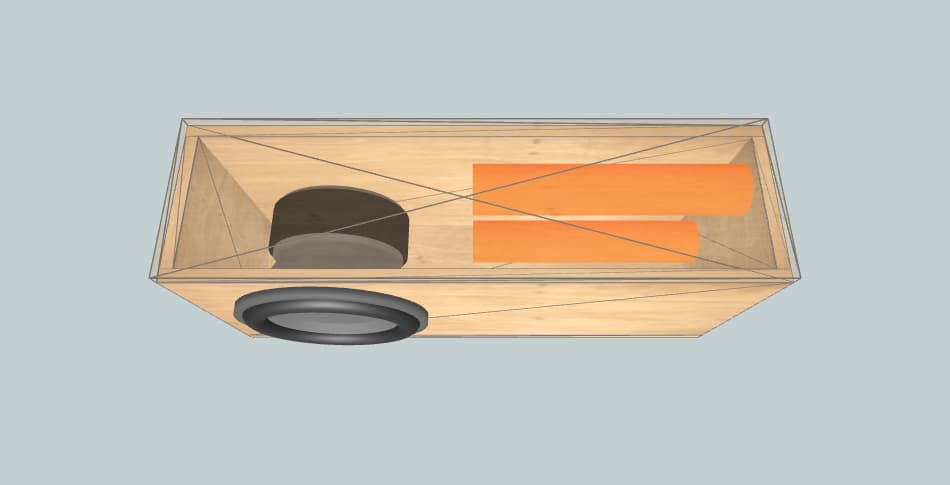

Enclosure Name: NVX VCW122
Subwoofer Size: 12 inch
Subwoofer Count: 1
|
Box External Dimensions Width × Height × Depth |
34.00" × 15.00" × 9.68" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.85 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 14.1 inch2 |
| Pipe Inner Diameter | 3.00" |
| Pipe Length | 17.14" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 34.00" × 9.68" | 2 |
| Front / Rear | 34.00" × 13.50" | 2 |
| Left / Right | 8.19" × 13.50" | 2 |
