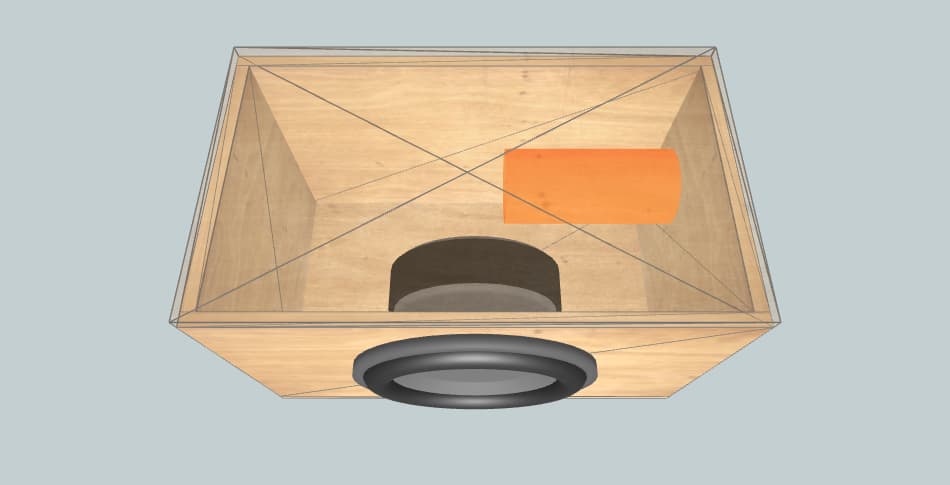

Box External Dimensions Width × Height × Depth |
32.68" × 12.80" × 19.11" |
| Material Thickness | 0.71" |
| Net Internal Volume | 2.37 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 46.5 inch2 |
| Port Inlet Width × Height |
4.09" × 11.38" |
| Port Length | 40.28" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 32.68" × 19.11" | 2 |
| Front | 27.88" × 11.38" | 1 |
| Rear | 32.68" × 11.38" | 1 |
| Left | 17.69" × 11.38" | 1 |
| Right | 18.40" × 11.38" | 1 |
| Port | 13.61" × 11.38" | 1 |
| Port | 21.17" × 11.38" | 1 |
