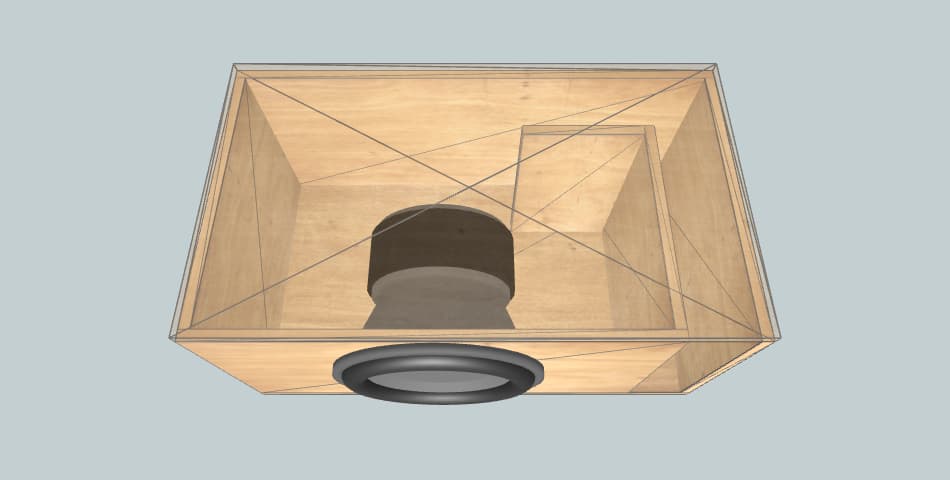

Box External Dimensions Width × Height × Depth |
40.00" × 18.00" × 21.94" |
| Material Thickness | 0.75" |
| Net Internal Volume | 6.50 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 75 inch2 |
| Port Inlet Width × Height |
4.54" × 16.50" |
| Port Length | 17.96" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 40.00" × 21.94" | 2 |
| Front | 34.71" × 16.50" | 1 |
| Rear | 40.00" × 16.50" | 1 |
| Left | 20.44" × 16.50" | 1 |
| Right | 21.19" × 16.50" | 1 |
| Port | 15.15" × 16.50" | 1 |
