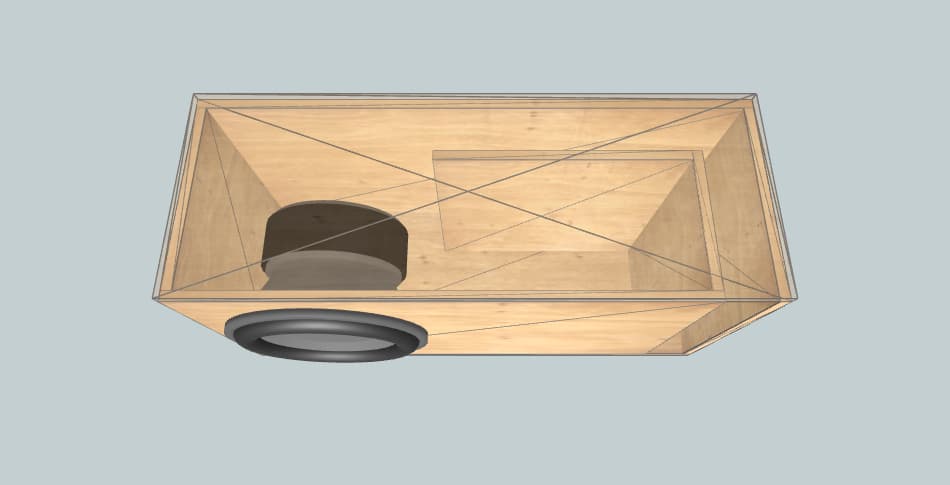

Box External Dimensions Width × Height × Depth |
43.00" × 18.00" × 24.48" |
| Material Thickness | 0.75" |
| Net Internal Volume | 7.00 ft3 |
| Tuning Frequency | 29 Hz |
| Port Area | 94.5 inch2 |
| Port Inlet Width × Height |
5.72" × 16.50" |
| Port Length | 31.37" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 43.00" × 24.48" | 2 |
| Front | 36.53" × 16.50" | 1 |
| Rear | 43.00" × 16.50" | 1 |
| Left | 22.99" × 16.50" | 1 |
| Right | 23.74" × 16.50" | 1 |
| Port | 17.26" × 16.50" | 1 |
| Port | 6.89" × 16.50" | 1 |
