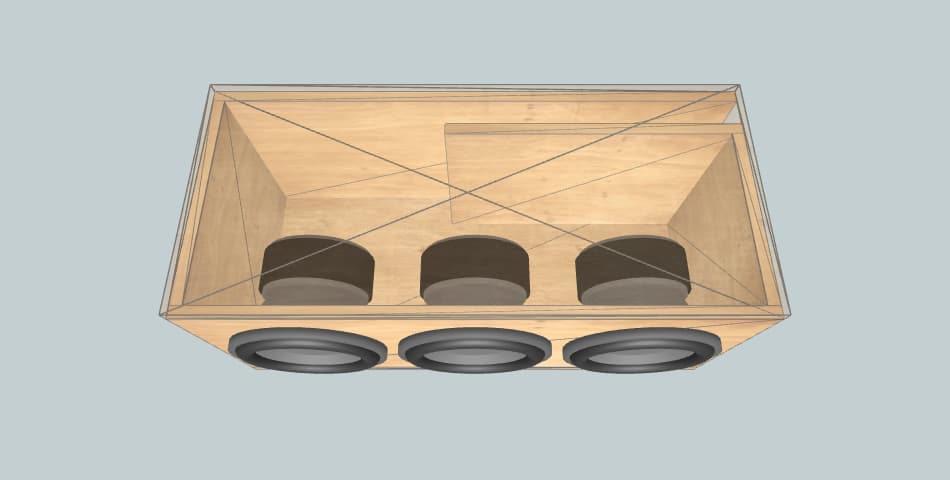

Box External Dimensions Width × Height × Depth |
23.62" × 13.78" × 16.60" |
| Material Thickness | 0.79" |
| Net Internal Volume | 1.62 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 27.9 inch2 |
| Port Inlet Width × Height |
2.29" × 12.20" |
| Port Length | 31.31" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 16.60" | 2 |
| Front | 20.55" × 12.20" | 1 |
| Rear | 23.62" × 12.20" | 1 |
| Left | 15.02" × 12.20" | 1 |
| Right | 15.81" × 12.20" | 1 |
| Port | 12.74" × 12.20" | 1 |
| Port | 14.71" × 12.20" | 1 |
