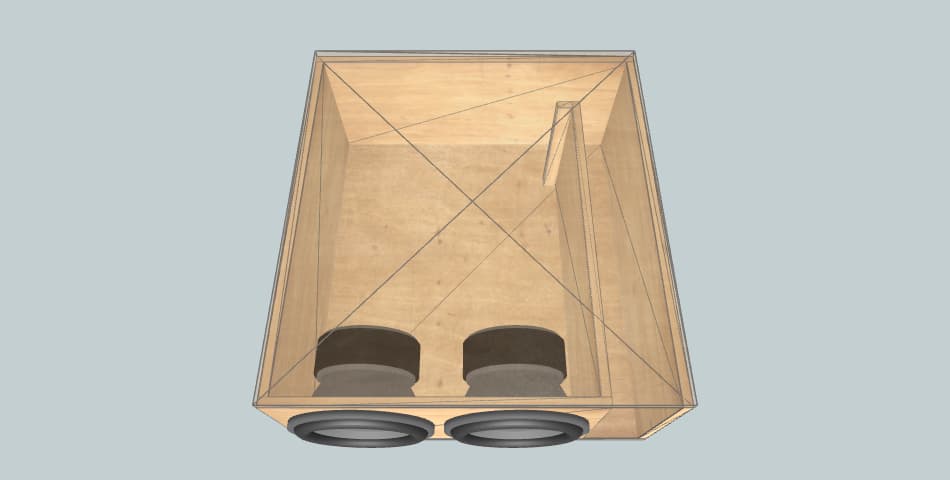

Box External Dimensions Width × Height × Depth |
17.00" × 14.00" × 20.67" |
| Material Thickness | 1.00" |
| Net Internal Volume | 1.75 ft3 |
| Tuning Frequency | 40 Hz |
| Port Area | 20 inch2 |
| Port Inlet Width × Height |
1.67" × 12.00" |
| Port Length | 13.76" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 17.00" × 20.67" | 2 |
| Front | 14.33" × 12.00" | 1 |
| Rear | 17.00" × 12.00" | 1 |
| Left | 18.67" × 12.00" | 1 |
| Right | 19.67" × 12.00" | 1 |
| Port | 12.76" × 12.00" | 1 |
