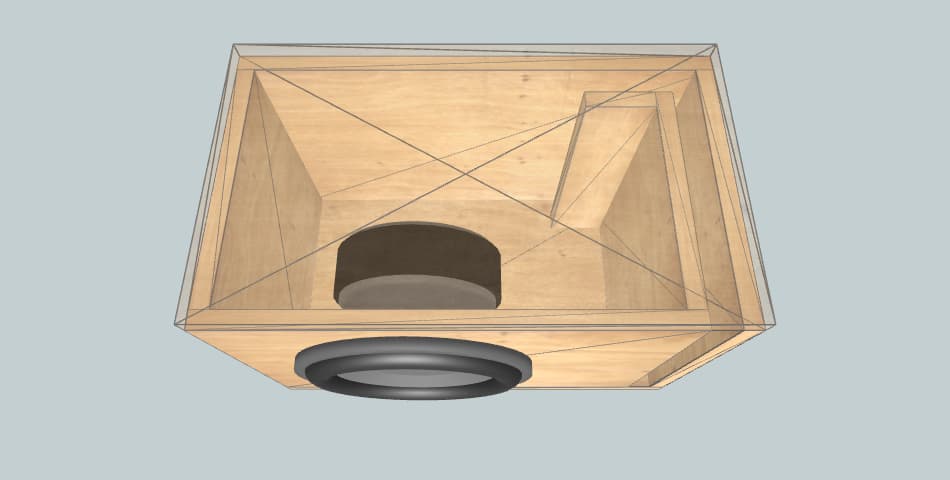

Box External Dimensions Width × Height × Depth |
20.08" × 15.75" × 13.33" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.50 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 18.6 inch2 |
| Port Inlet Width × Height |
1.31" × 14.25" |
| Port Length | 21.98" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.08" × 13.33" | 2 |
| Front | 18.02" × 14.25" | 1 |
| Rear | 20.08" × 14.25" | 1 |
| Left | 11.83" × 14.25" | 1 |
| Right | 12.58" × 14.25" | 1 |
| Port | 10.52" × 14.25" | 1 |
| Port | 8.65" × 14.25" | 1 |
