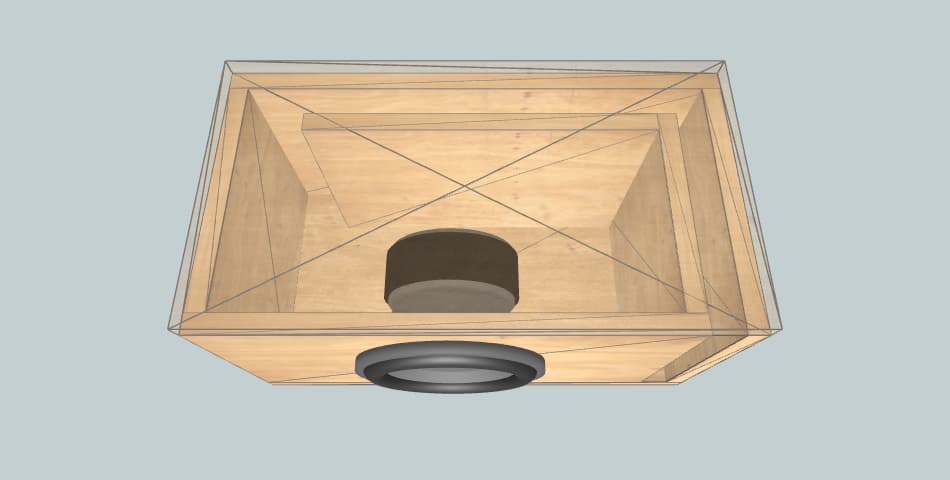

Box External Dimensions Width × Height × Depth |
33.00" × 14.00" × 18.00" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.50 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 40 inch2 |
| Port Inlet Width × Height |
3.20" × 12.50" |
| Port Length | 62.37" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 33.00" × 18.00" | 2 |
| Front | 29.05" × 12.50" | 1 |
| Rear | 33.00" × 12.50" | 1 |
| Left | 16.50" × 12.50" | 1 |
| Right | 17.25" × 12.50" | 1 |
| Port | 13.30" × 12.50" | 1 |
| Port | 44.37" × 12.50" | 1 |
