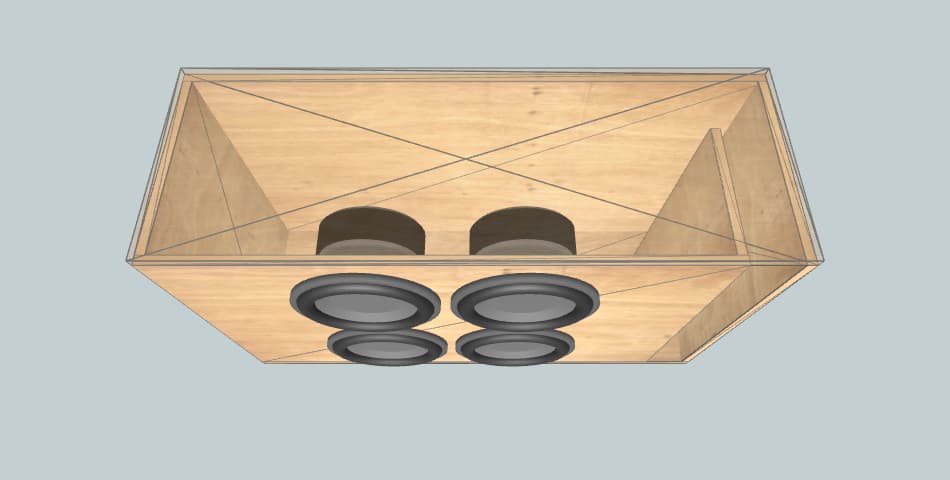

Box External Dimensions Width × Height × Depth |
31.25" × 13.20" × 25.98" |
| Material Thickness | 1.00" |
| Net Internal Volume | 3.15 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 55 inch2 |
| Port Inlet Width × Height |
4.91" × 11.20" |
| Port Length | 36.87" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 31.25" × 25.98" | 2 |
| Front | 25.34" × 11.20" | 1 |
| Rear | 31.25" × 11.20" | 1 |
| Left | 23.98" × 11.20" | 1 |
| Right | 24.98" × 11.20" | 1 |
| Port | 19.07" × 11.20" | 1 |
| Port | 10.88" × 11.20" | 1 |
