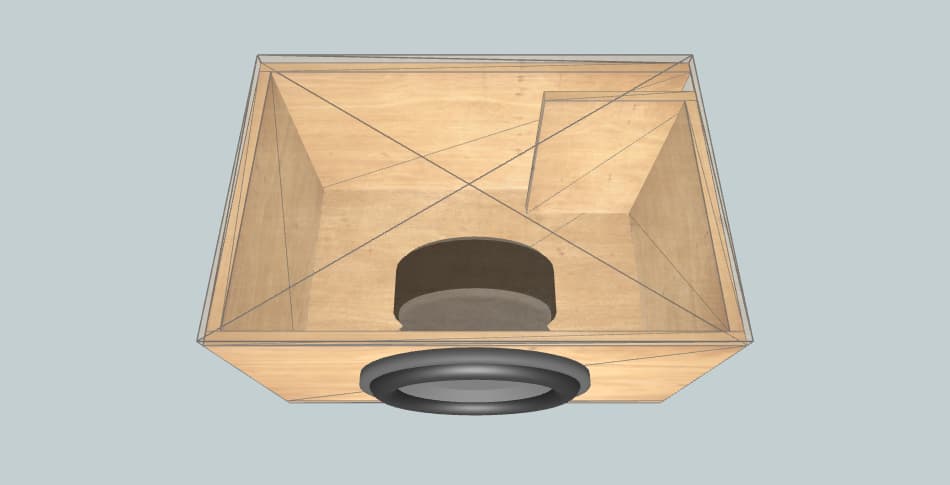

Subwoofer Box Specifications
Enclosure Name: Biltema
Subwoofer Size: 12 inch
Subwoofer Count: 3
|
Box External Dimensions Width × Height × Depth |
47.24" × 15.75" × 15.43" |
| Material Thickness | 0.75" |
| Net Internal Volume | 4.59 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 46.5 inch2 |
| Port Inlet Width × Height |
3.26" × 14.25" |
| Port Length | 21.99" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 47.24" × 15.43" | 2 |
| Front | 43.23" × 14.25" | 1 |
| Rear | 47.24" × 14.25" | 1 |
| Left | 13.94" × 14.25" | 1 |
| Right | 14.69" × 14.25" | 1 |
| Port | 10.67" × 14.25" | 1 |
| Port | 6.56" × 14.25" | 1 |
