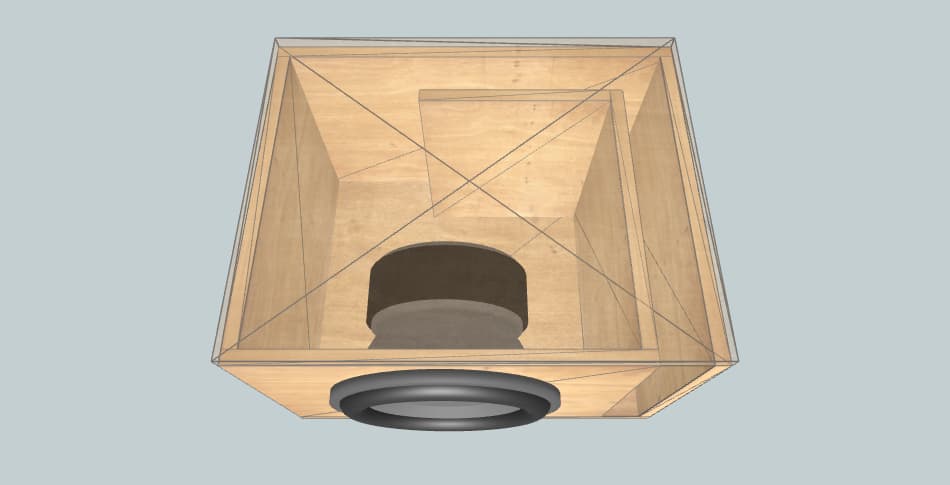

Box External Dimensions Width × Height × Depth |
23.62" × 13.78" × 25.04" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.60 ft3 |
| Tuning Frequency | 32 Hz |
| Port Area | 40 inch2 |
| Port Inlet Width × Height |
3.26" × 12.28" |
| Port Length | 32.76" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 25.04" | 2 |
| Front | 19.62" × 12.28" | 1 |
| Rear | 23.62" × 12.28" | 1 |
| Left | 23.55" × 12.28" | 1 |
| Right | 24.30" × 12.28" | 1 |
| Port | 20.29" × 12.28" | 1 |
| Port | 7.71" × 12.28" | 1 |
