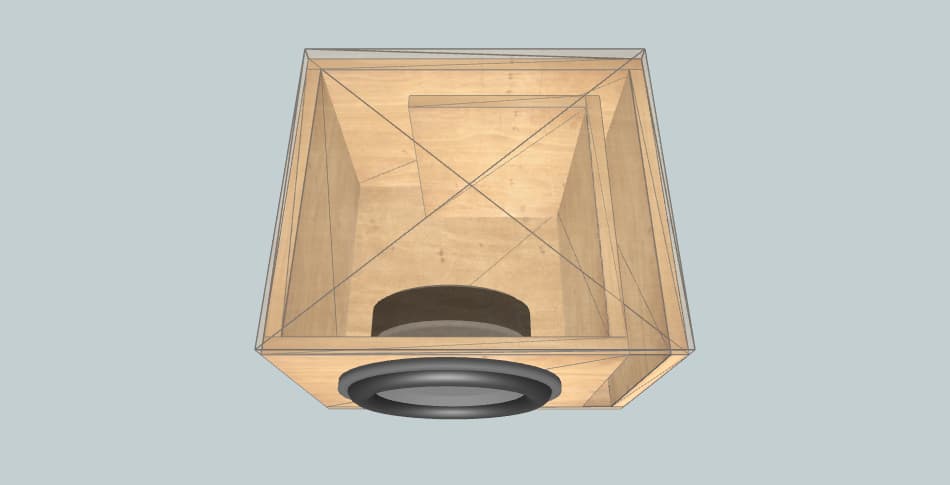

Box External Dimensions Width × Height × Depth |
36.00" × 17.00" × 24.46" |
| Material Thickness | 0.71" |
| Net Internal Volume | 6.50 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 50.2 inch2 |
| Pipe Inner Diameter | 8.00" |
| Pipe Length | 18.70" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 36.00" × 24.46" | 2 |
| Front / Rear | 36.00" × 15.58" | 2 |
| Left / Right | 23.04" × 15.58" | 2 |
