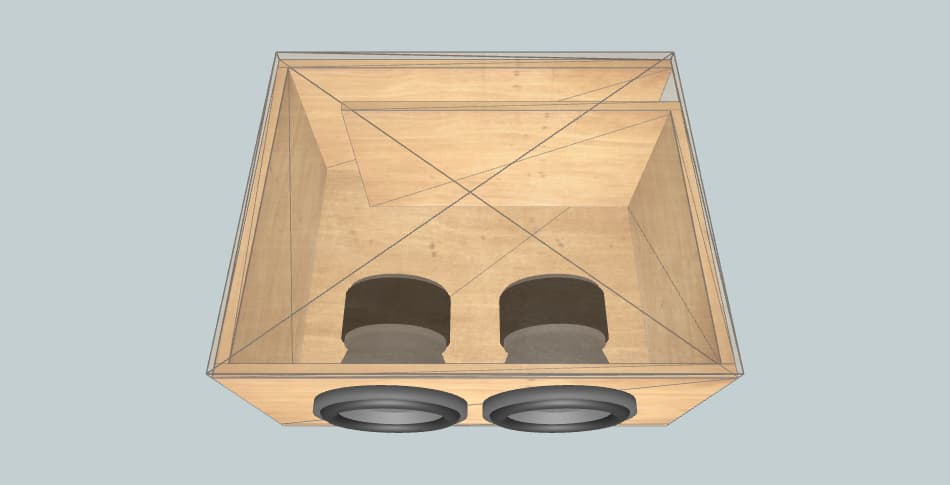

Box External Dimensions Width × Height × Depth |
29.00" × 12.00" × 13.59" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.65 ft3 |
| Tuning Frequency | 34 Hz |
| Port Area | 15 inch2 |
| Port Inlet Width × Height |
1.43" × 10.50" |
| Port Length | 16.46" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 29.00" × 13.59" | 2 |
| Front | 26.82" × 10.50" | 1 |
| Rear | 29.00" × 10.50" | 1 |
| Left | 12.09" × 10.50" | 1 |
| Right | 12.84" × 10.50" | 1 |
| Port | 10.66" × 10.50" | 1 |
| Port | 2.87" × 10.50" | 1 |
