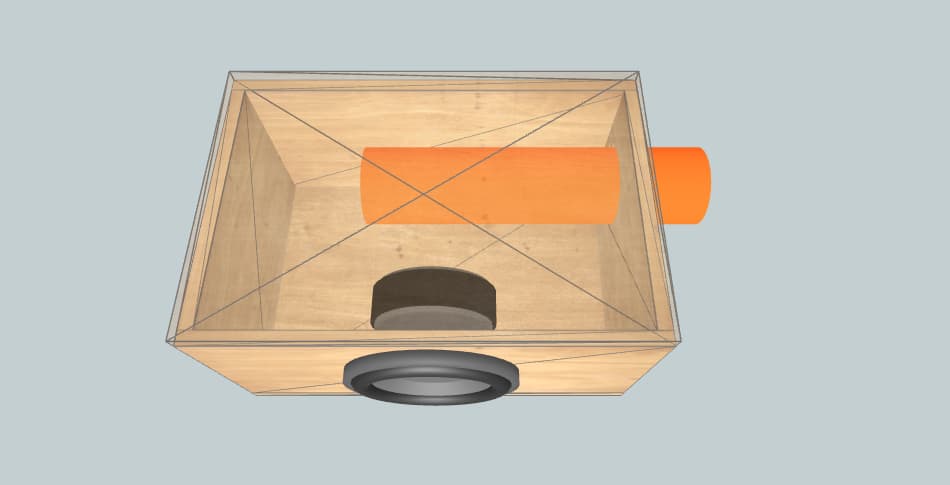

Box External Dimensions Width × Height × Depth |
14.06" × 11.81" × 20.58" |
| Material Thickness | 0.71" |
| Net Internal Volume | 1.17 ft3 |
| Tuning Frequency | 40.7 Hz |
| Port Area | 18.3 inch2 |
| Port Inlet Width × Height |
1.76" × 10.39" |
| Port Length | 20.30" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 14.06" × 20.58" | 2 |
| Front | 11.59" × 10.39" | 1 |
| Rear | 14.06" × 10.39" | 1 |
| Left | 19.17" × 10.39" | 1 |
| Right | 19.87" × 10.39" | 1 |
| Port | 16.70" × 10.39" | 1 |
