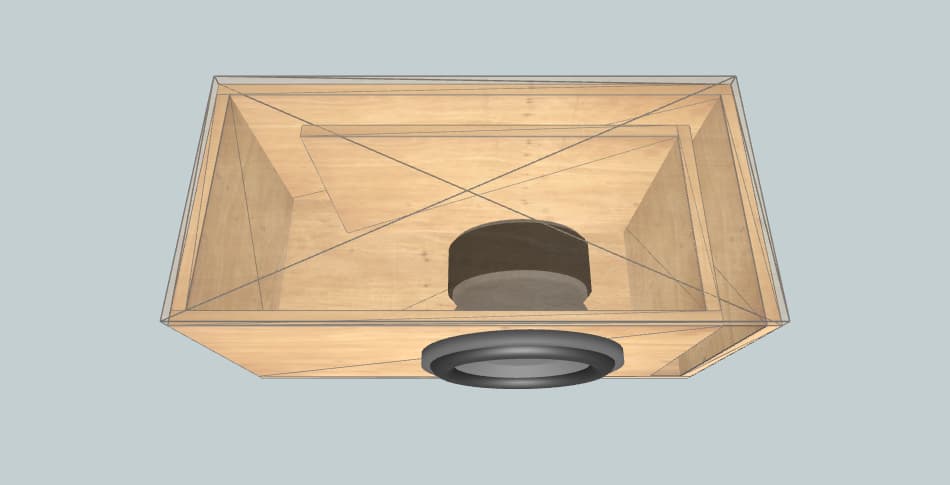

Box External Dimensions Width × Height × Depth |
19.69" × 21.65" × 13.19" |
| Material Thickness | 0.98" |
| Net Internal Volume | 1.11 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 7.1 inch2 |
| Pipe Inner Diameter | 3.00" |
| Pipe Length | 16.06" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 19.69" × 13.19" | 2 |
| Front / Rear | 19.69" × 19.69" | 2 |
| Left / Right | 11.22" × 19.69" | 2 |
