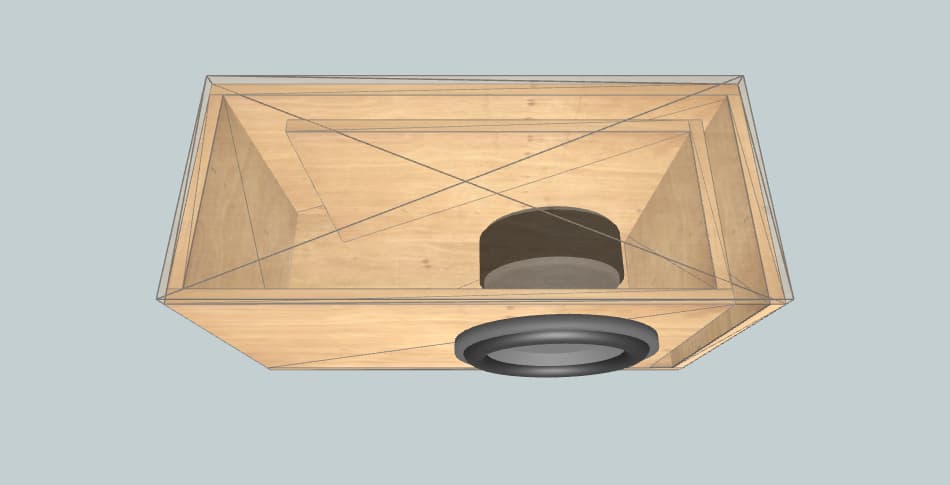

Box External Dimensions Width × Height × Depth |
21.00" × 13.78" × 13.52" |
| Material Thickness | 0.50" |
| Net Internal Volume | 1.50 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 16.3 inch2 |
| Port Inlet Width × Height |
1.27" × 12.78" |
| Port Length | 27.52" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 21.00" × 13.52" | 2 |
| Front | 19.23" × 12.78" | 1 |
| Rear | 21.00" × 12.78" | 1 |
| Left | 12.52" × 12.78" | 1 |
| Right | 13.02" × 12.78" | 1 |
| Port | 11.25" × 12.78" | 1 |
| Port | 13.99" × 12.78" | 1 |
