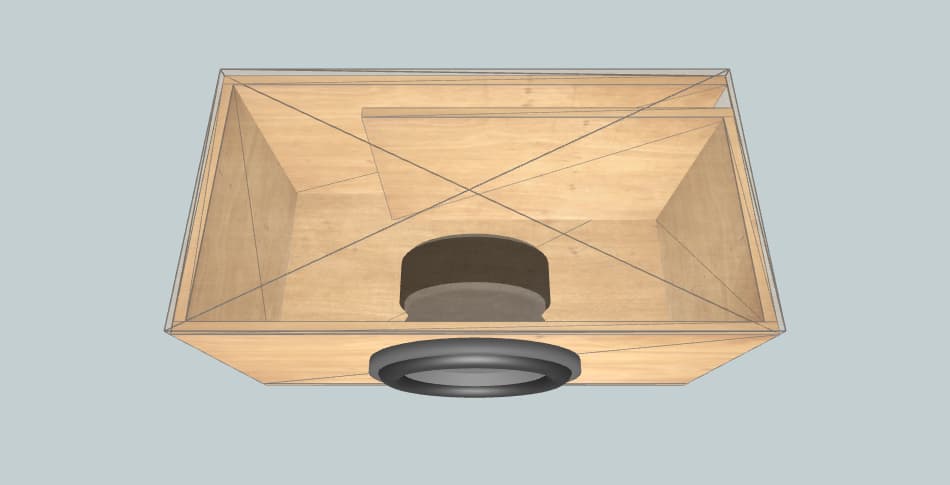

Box External Dimensions Width × Height × Depth |
17.72" × 13.78" × 14.54" |
| Material Thickness | 0.47" |
| Net Internal Volume | 1.20 ft3 |
| Tuning Frequency | 40 Hz |
| Port Area | 23.3 inch2 |
| Port Inlet Width × Height |
1.81" × 12.83" |
| Port Length | 26.70" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 17.72" × 14.54" | 2 |
| Front | 15.43" × 12.83" | 1 |
| Rear | 17.72" × 12.83" | 1 |
| Left | 13.60" × 12.83" | 1 |
| Right | 14.07" × 12.83" | 1 |
| Port | 11.79" × 12.83" | 1 |
| Port | 12.16" × 12.83" | 1 |
