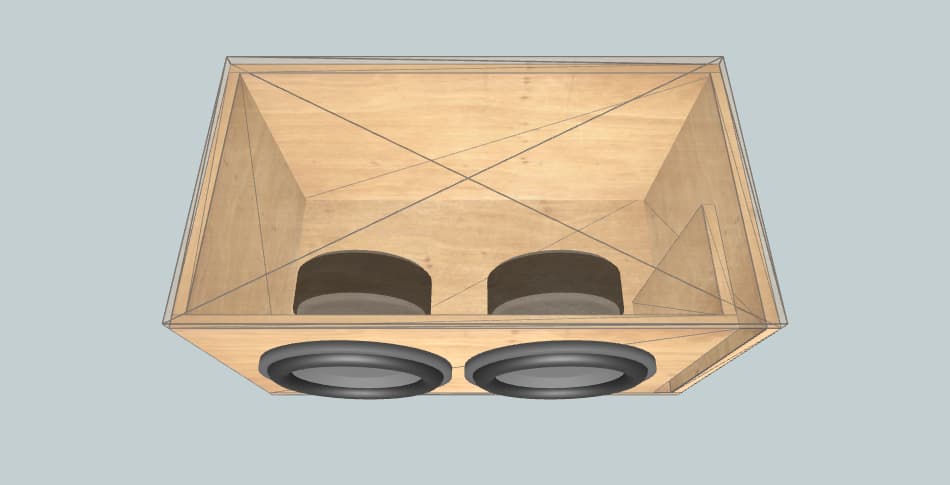

Box External Dimensions Width × Height × Depth |
38.00" × 15.00" × 21.75" |
| Material Thickness | 0.75" |
| Net Internal Volume | 4.00 ft3 |
| Tuning Frequency | 31 Hz |
| Port Area | 57.5 inch2 |
| Port Inlet Width × Height |
4.26" × 13.50" |
| Port Length | 31.02" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 38.00" × 21.75" | 2 |
| Front | 32.99" × 13.50" | 1 |
| Rear | 38.00" × 13.50" | 1 |
| Left | 20.25" × 13.50" | 1 |
| Right | 21.00" × 13.50" | 1 |
| Port | 15.99" × 13.50" | 1 |
| Port | 9.27" × 13.50" | 1 |
