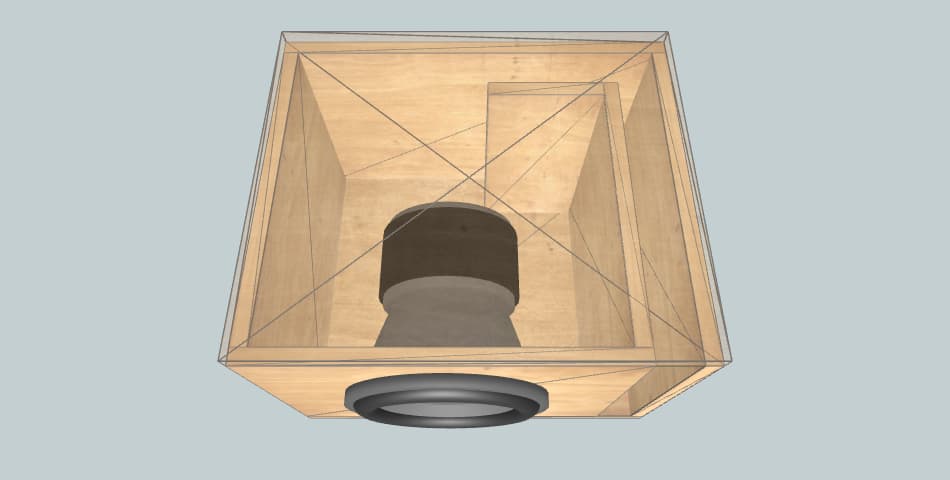

Box External Dimensions Width × Height × Depth |
30.00" × 11.00" × 12.60" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.40 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 15 inch2 |
| Port Inlet Width × Height |
1.58" × 9.50" |
| Port Length | 18.85" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 30.00" × 12.60" | 2 |
| Front | 27.67" × 9.50" | 1 |
| Rear | 30.00" × 9.50" | 1 |
| Left | 11.10" × 9.50" | 1 |
| Right | 11.85" × 9.50" | 1 |
| Port | 9.52" × 9.50" | 1 |
| Port | 6.26" × 9.50" | 1 |
