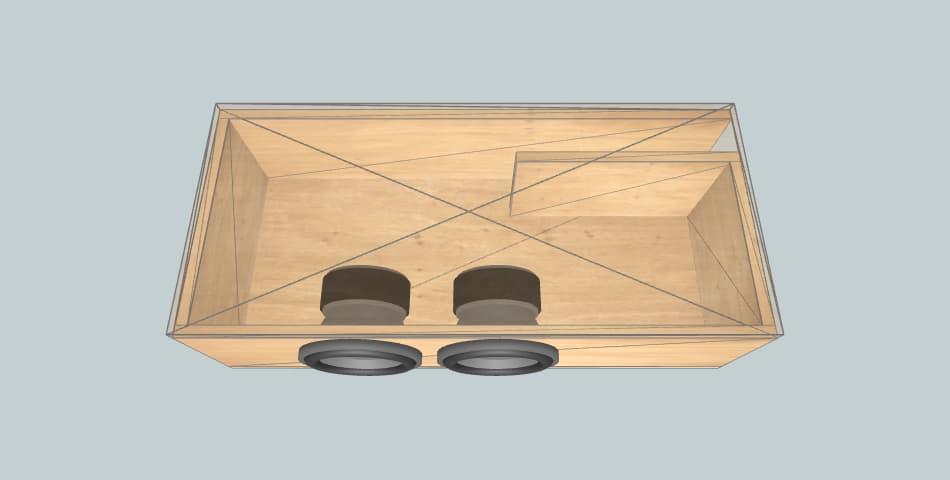

Box External Dimensions Width × Height × Depth |
23.00" × 12.00" × 14.89" |
| Material Thickness | 0.75" |
| Net Internal Volume | 1.11 ft3 |
| Tuning Frequency | 33.5 Hz |
| Port Area | 18 inch2 |
| Port Inlet Width × Height |
1.71" × 10.50" |
| Port Length | 33.77" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.00" × 14.89" | 2 |
| Front / Rear | 23.00" × 10.50" | 2 |
| Left | 13.40" × 10.50" | 1 |
| Right | 10.94" × 10.50" | 1 |
| Port | 33.77" × 10.50" | 1 |
