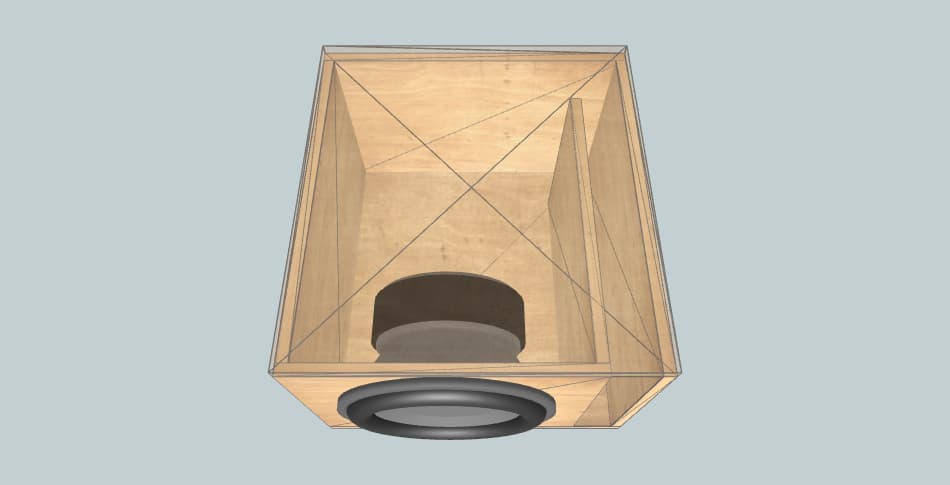

Box External Dimensions Width × Height × Depth |
27.56" × 16.14" × 19.72" |
| Material Thickness | 0.71" |
| Net Internal Volume | 3.64 ft3 |
| Tuning Frequency | 37 Hz |
| Port Area | 31.2 inch2 |
| Pipe Inner Diameter | 6.30" |
| Pipe Length | 10.67" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 27.56" × 19.72" | 2 |
| Front / Rear | 27.56" × 14.72" | 2 |
| Left / Right | 18.30" × 14.72" | 2 |
