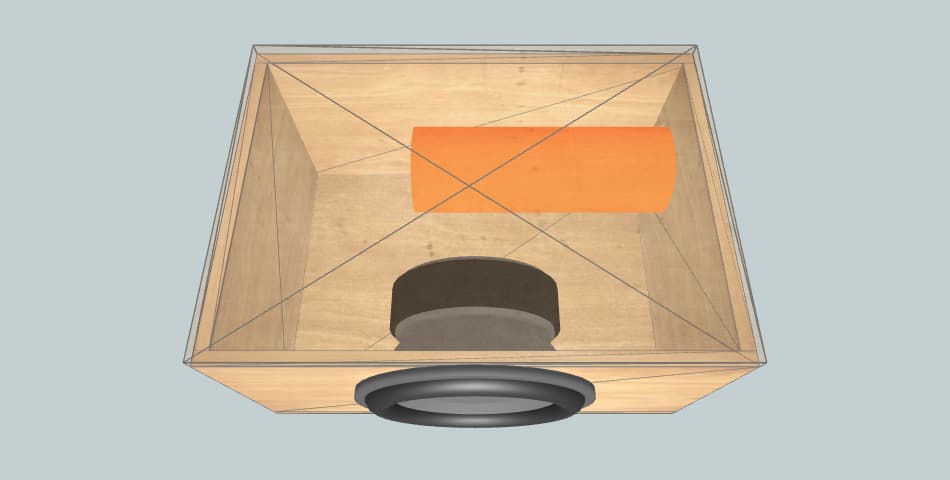

Box External Dimensions Width × Height × Depth |
35.43" × 17.72" × 19.02" |
| Material Thickness | 0.87" |
| Net Internal Volume | 3.46 ft3 |
| Tuning Frequency | 33 Hz |
| Port Area | 62.9 inch2 |
| Port Inlet Width × Height |
3.94" × 15.98" |
| Port Length | 35.29" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 35.43" × 19.02" | 2 |
| Front | 30.63" × 15.98" | 1 |
| Rear | 35.43" × 15.98" | 1 |
| Left | 17.28" × 15.98" | 1 |
| Right | 18.15" × 15.98" | 1 |
| Port | 13.35" × 15.98" | 1 |
| Port | 16.27" × 15.98" | 1 |
