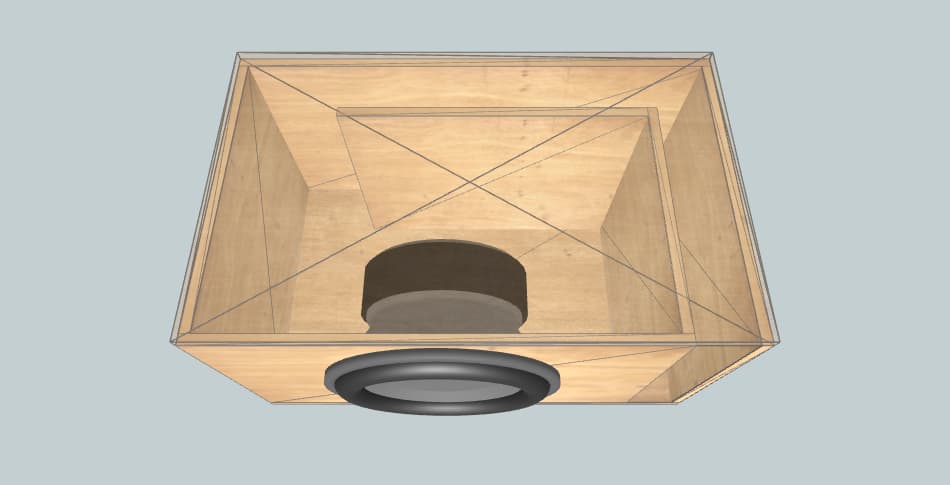

Box External Dimensions Width × Height × Depth |
24.00" × 17.00" × 34.22" |
| Material Thickness | 1.00" |
| Net Internal Volume | 5.00 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 62 inch2 |
| Port Inlet Width × Height |
4.13" × 15.00" |
| Port Length | 27.50" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 24.00" × 34.22" | 2 |
| Front | 18.87" × 15.00" | 1 |
| Rear | 24.00" × 15.00" | 1 |
| Left | 32.22" × 15.00" | 1 |
| Right | 33.22" × 15.00" | 1 |
| Port | 26.50" × 15.00" | 1 |
