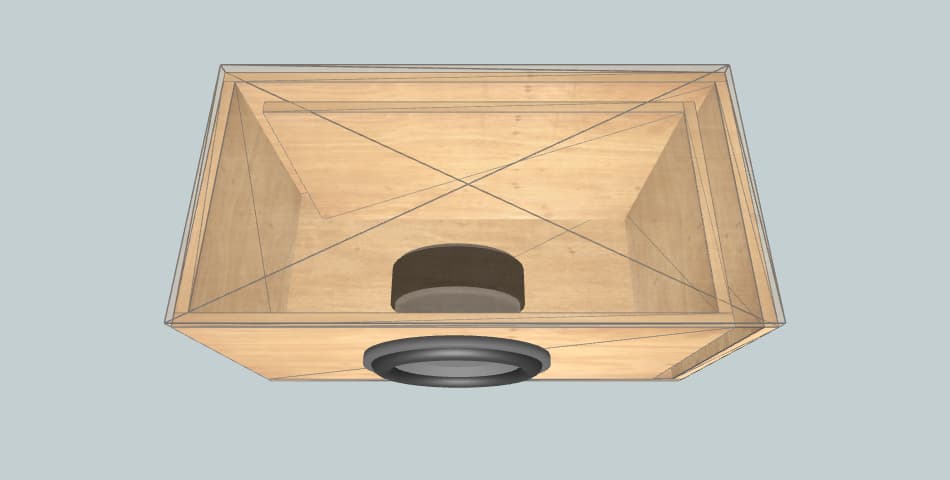

Box External Dimensions Width × Height × Depth |
24.00" × 15.00" × 14.78" |
| Material Thickness | 0.74" |
| Net Internal Volume | 2.00 ft3 |
| Tuning Frequency | 38 Hz |
| Port Area | 25.1 inch2 |
| Pipe Inner Diameter | 4.00" |
| Pipe Length | 19.51" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 24.00" × 14.78" | 2 |
| Front / Rear | 24.00" × 13.52" | 2 |
| Left / Right | 13.30" × 13.52" | 2 |
