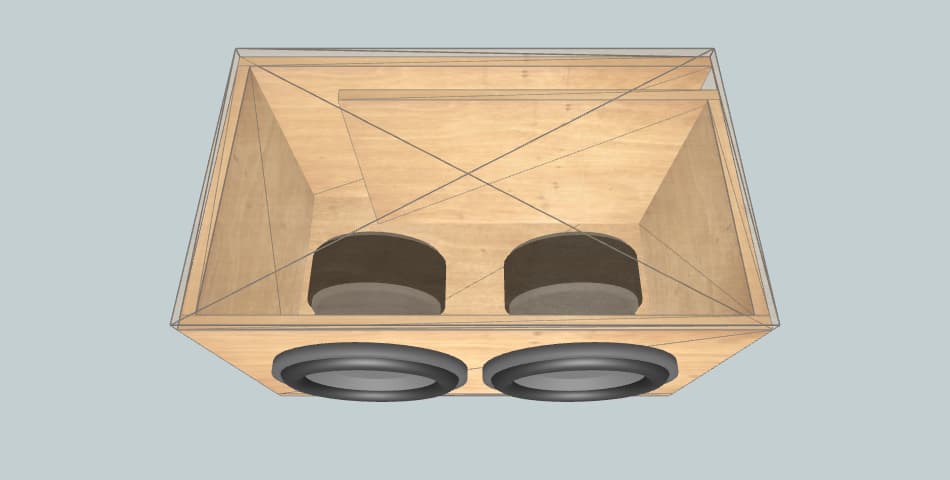

Subwoofer Box Specifications
Enclosure Name: Q class Dual 10" Take 1
Subwoofer Brand: Kicker
Subwoofer Size: 10 inch
Subwoofer Count: 2
|
Box External Dimensions Width × Height × Depth |
30.00" × 16.50" × 18.26" |
| Material Thickness | 0.75" |
| Net Internal Volume | 4.00 ft3 |
| Tuning Frequency | 24 Hz |
| Port Area | 15.5 inch2 |
| Port Inlet Width × Height |
1.03" × 15.00" |
| Port Length | 13.31" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 30.00" × 18.26" | 2 |
| Front / Rear | 30.00" × 15.00" | 2 |
| Left | 16.77" × 15.00" | 1 |
| Right | 14.99" × 15.00" | 1 |
| Port | 13.31" × 15.00" | 1 |
