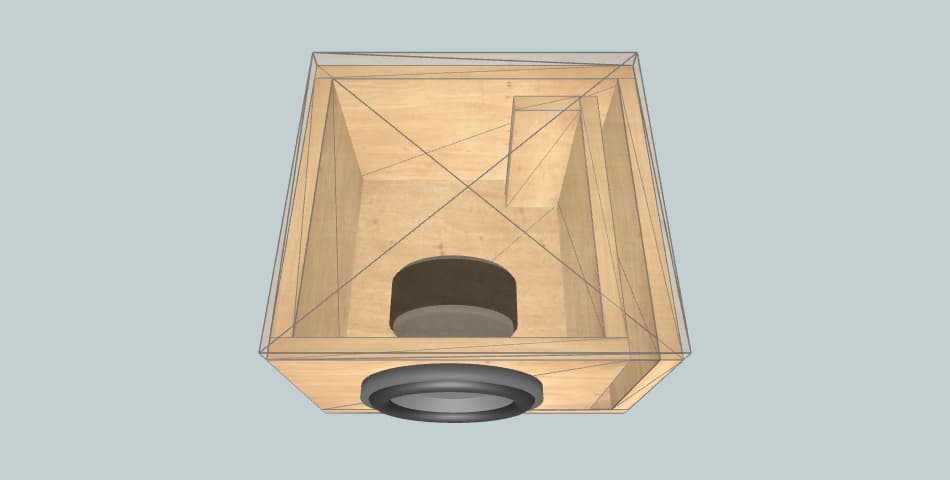

Box External Dimensions Width × Height × Depth |
48.00" × 11.00" × 15.02" |
| Material Thickness | 0.75" |
| Net Internal Volume | 3.00 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 14.1 inch2 |
| Pipe Inner Diameter | 3.00" |
| Pipe Length | 7.41" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 48.00" × 15.02" | 2 |
| Front / Rear | 48.00" × 9.50" | 2 |
| Left / Right | 13.52" × 9.50" | 2 |
