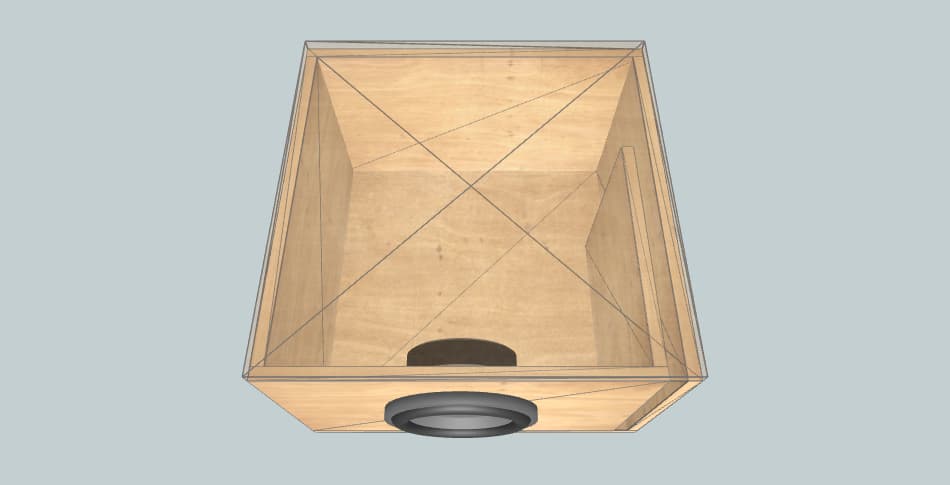

Box External Dimensions Width × Height × Depth |
26.77" × 14.17" × 15.15" |
| Material Thickness | 0.79" |
| Net Internal Volume | 2.41 ft3 |
| Tuning Frequency | 29.3 Hz |
| Port Area | 12.2 inch2 |
| Pipe Inner Diameter | 3.94" |
| Pipe Length | 11.96" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 26.77" × 15.15" | 2 |
| Front / Rear | 26.77" × 12.60" | 2 |
| Left / Right | 13.57" × 12.60" | 2 |
