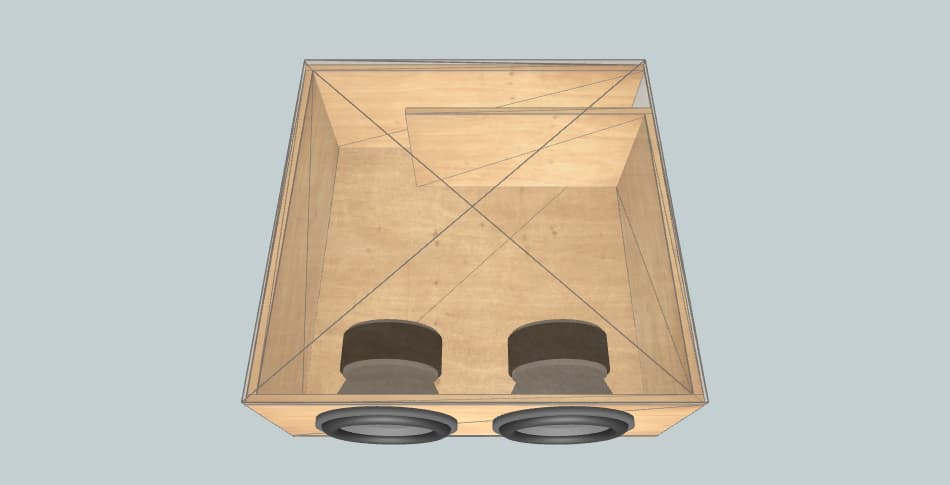

Box External Dimensions Width × Height × Depth |
22.05" × 15.75" × 14.49" |
| Material Thickness | 0.71" |
| Net Internal Volume | 2.12 ft3 |
| Tuning Frequency | 37 Hz |
| Port Area | 17.5 inch2 |
| Pipe Inner Diameter | 4.72" |
| Pipe Length | 11.63" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 22.05" × 14.49" | 2 |
| Front / Rear | 22.05" × 14.33" | 2 |
| Left / Right | 13.07" × 14.33" | 2 |
