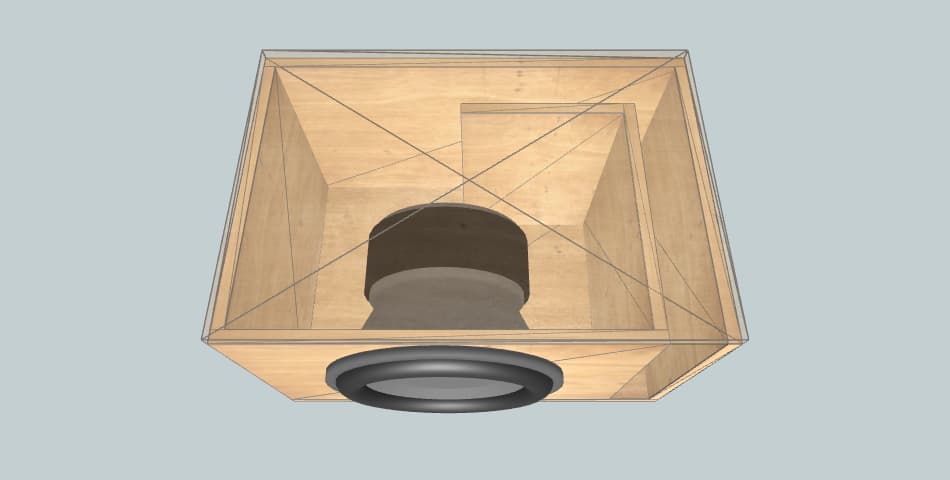

Box External Dimensions Width × Height × Depth |
37.25" × 17.00" × 20.93" |
| Material Thickness | 0.75" |
| Net Internal Volume | 4.80 ft3 |
| Tuning Frequency | 28 Hz |
| Port Area | 59 inch2 |
| Port Inlet Width × Height |
3.81" × 15.50" |
| Port Length | 32.86" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 37.25" × 20.93" | 2 |
| Front / Rear | 37.25" × 15.50" | 2 |
| Left | 19.44" × 15.50" | 1 |
| Right | 14.88" × 15.50" | 1 |
| Port | 32.86" × 15.50" | 1 |
