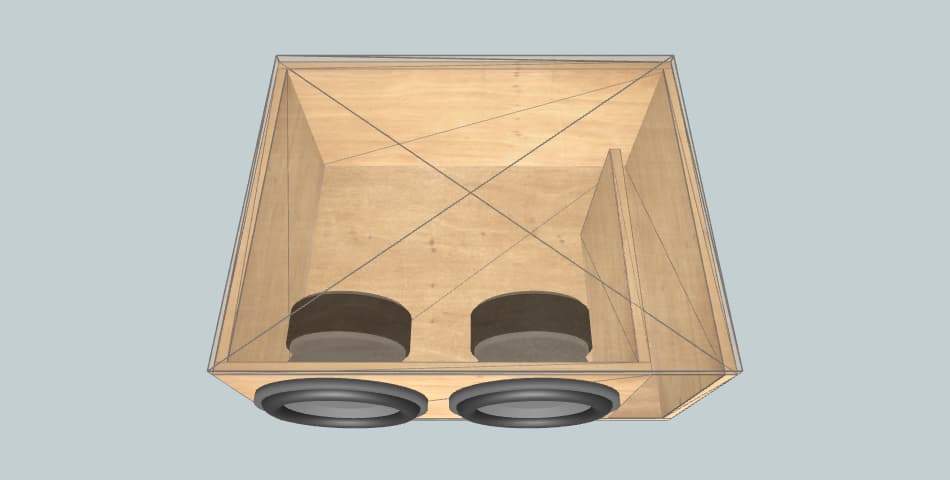

Box External Dimensions Width × Height × Depth |
20.00" × 14.00" × 18.00" |
| Material Thickness | 0.75" |
| Net Internal Volume | 2.01 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 22.5 inch2 |
| Pipe Inner Diameter | 5.35" |
| Pipe Length | 19.37" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 20.00" × 18.00" | 2 |
| Front / Rear | 20.00" × 12.50" | 2 |
| Left / Right | 16.51" × 12.50" | 2 |
