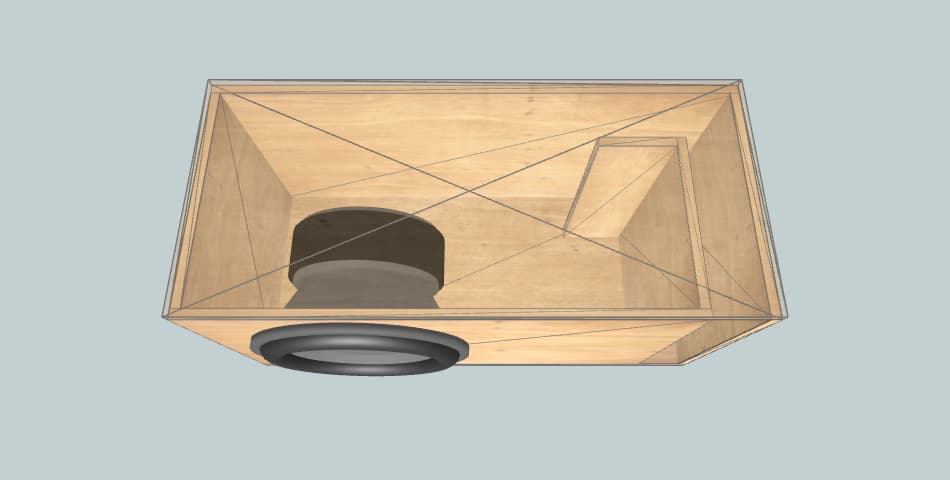

Box External Dimensions Width × Height × Depth |
23.62" × 13.78" × 53.37" |
| Material Thickness | 1.25" |
| Net Internal Volume | 7.01 ft3 |
| Tuning Frequency | 35 Hz |
| Port Area | 22.5 inch2 |
| Pipe Inner Diameter | 5.35" |
| Pipe Length | 1.81" |
| Detail | Size | Quantity |
|---|---|---|
| Top / Bottom | 23.62" × 53.37" | 2 |
| Front / Rear | 23.62" × 11.28" | 2 |
| Left / Right | 50.87" × 11.28" | 2 |
